Compact. Rugged. Always-Connected.

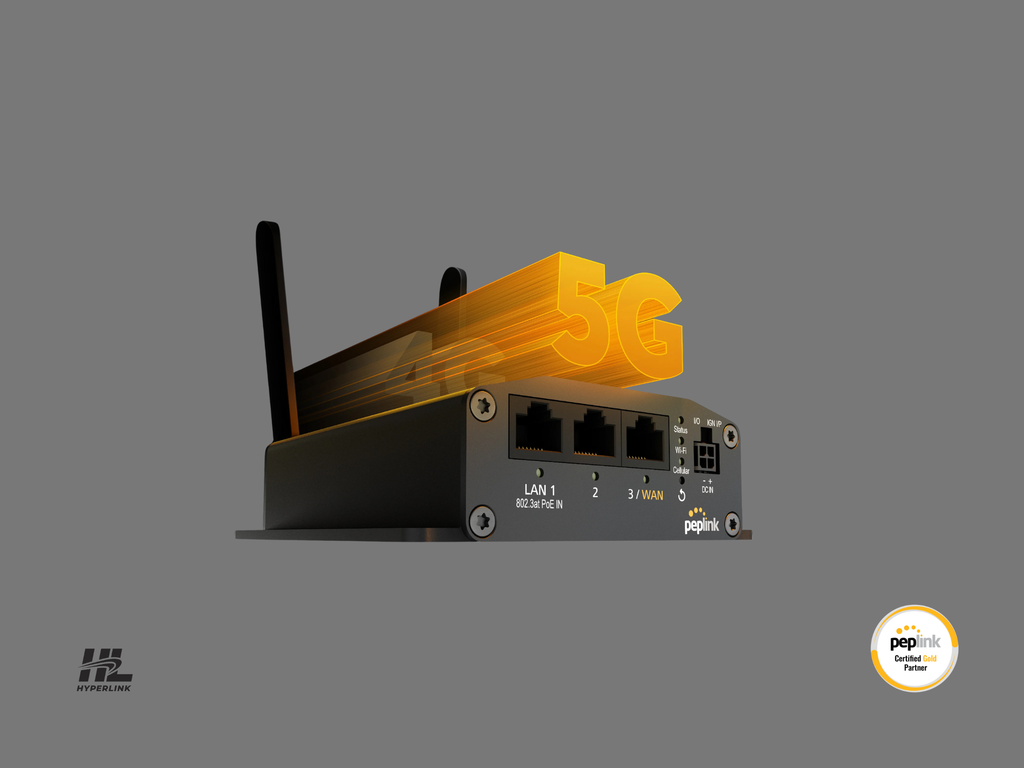

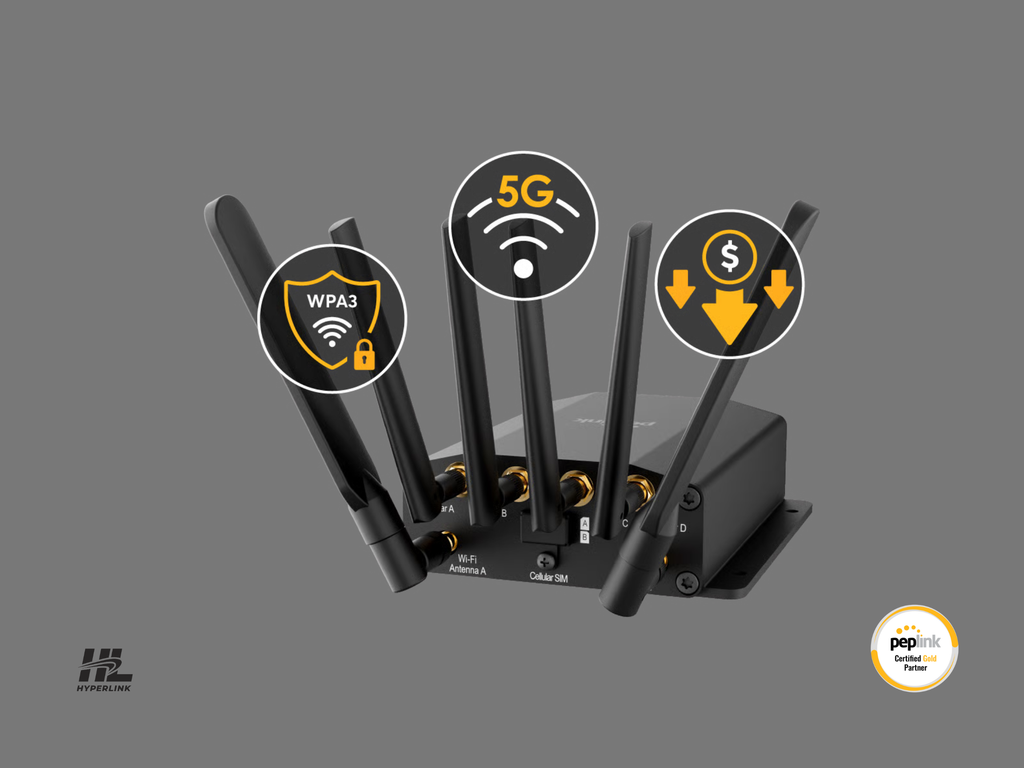

The MAX BR1 Mini 5G delivers enterprise-grade connectivity in a compact, deployment-ready form. Built for mobile, remote and industrial environments, this router brings 5G (and LTE fallback) performance, robust build quality, and advanced management — making it an ideal choice for kiosks, kiosks, mobile fleets, IoT installations, broadcasting, retail POS and more.

Key Highlights

• Equipped with a global 5G modem (Sub-6GHz) that provides carrier-grade throughput and LTE (CAT-20) fallback when 5G is unavailable.
• Supports dual SIM (physical) plus eSIM/BYO eSIM profiles, enabling seamless carrier switching or redundancy.
• Router throughput of up to 300 Mbps; 5G theoretical downlink up to 3.4 Gbps / uplink up to 900 Mbps; LTE fallback at up to 1.6 Gbps / 200 Mbps (theoretical).
• Flexible connection options: gigabit Ethernet ports, optional WiFi version, optional Ethernet WAN port (via license/feature-pack).
• Centralized management via Peplink InControl2 plus local device management through Peplink InTouch — making large-scale fleets or distributed deployments easier to operate.

Ideal Use Cases

• Mobile or Vehicular Deployments — Van or bus fleets, remote cameras, outdoor kiosks; the BR1 Mini’s rugged metal chassis and wide temperature range make it ideal for on-the-move, harsh-environment use.
• IoT / M2M & Industrial — For connected sensors, kiosks, mobile POS, remote surveillance: compact footprint, robust design, cellular primed.

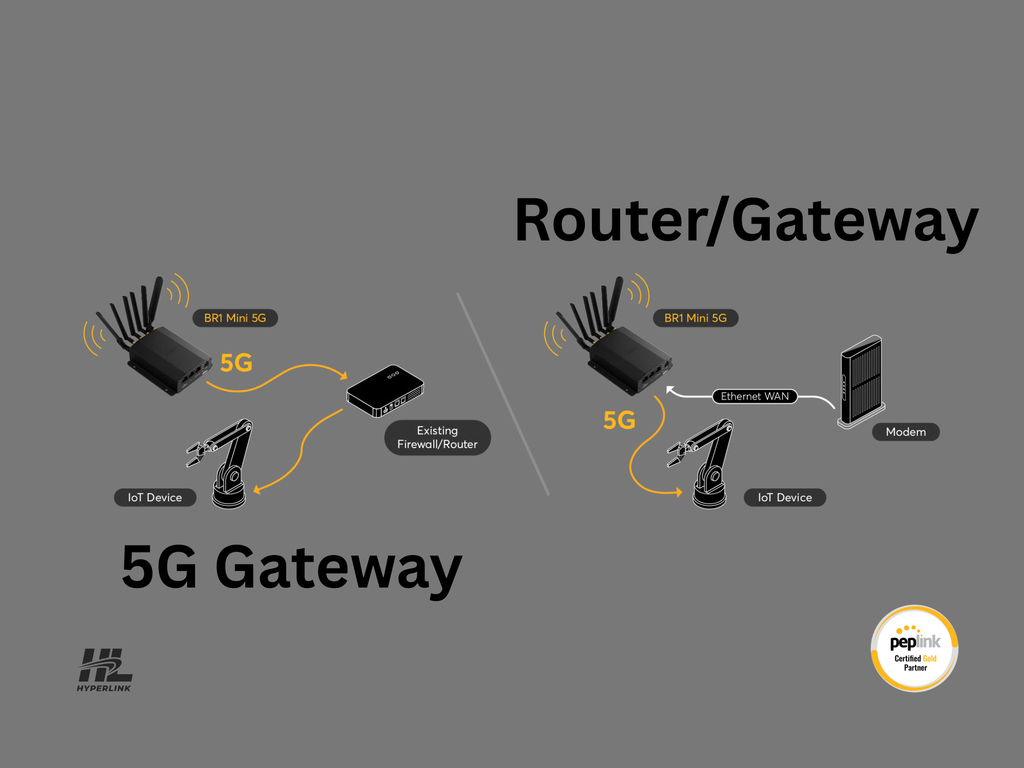

• Primary or Fail-over Connectivity — Use as your main 5G link, or as a backup/failover to primary wired broadband; the SIM redundancy, optional Ethernet WAN, and failover features cover all bases.
• Remote Branch / Pop-Up Locations — Quickly deploy a high-speed 5G connection in stores, events, temporary offices, or remote sites where wired connectivity is unavailable or expensive.

Technical Snapshot

• Dimensions: 125.7 × 107 × 35 mm (≈ 5.0″ × 4.2″ × 1.4″)
• Weight: ~420 g

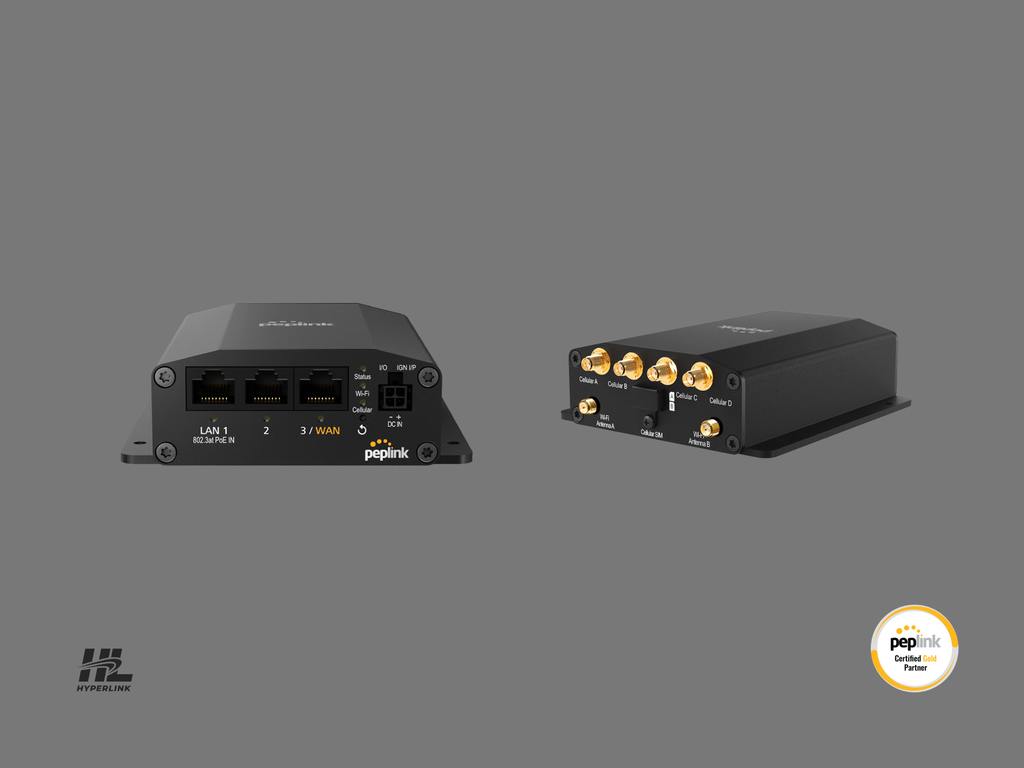

• Ports: Embedded 5G modem + redundant SIMs; 1x GE WAN/LAN, 2x GE LAN
• Power: DC 10-30V input or PoE 802.3at; nominal consumption ~11W, max ~13W
• Certifications: FCC, CE, RoHS, EN 61000 EMC, EN 45545-2
